Clayton-Greene Composting Barn
Location: Awatuna, Taranaki
BUILDING DETAILS
Size: 86m L x 45.5m D x 4.55m-11.94m H
Style: Gable
System: Futura Box-Beam

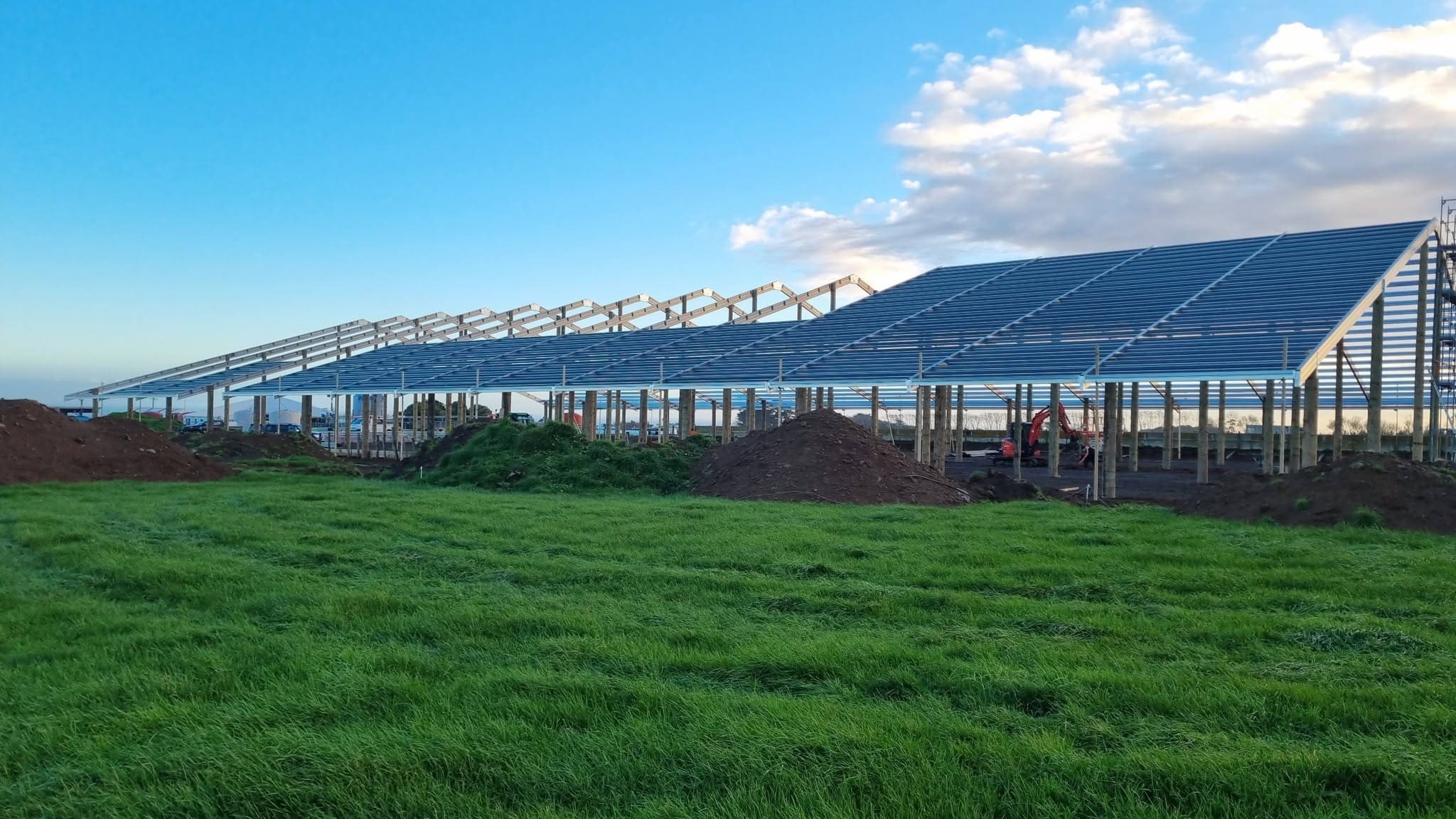

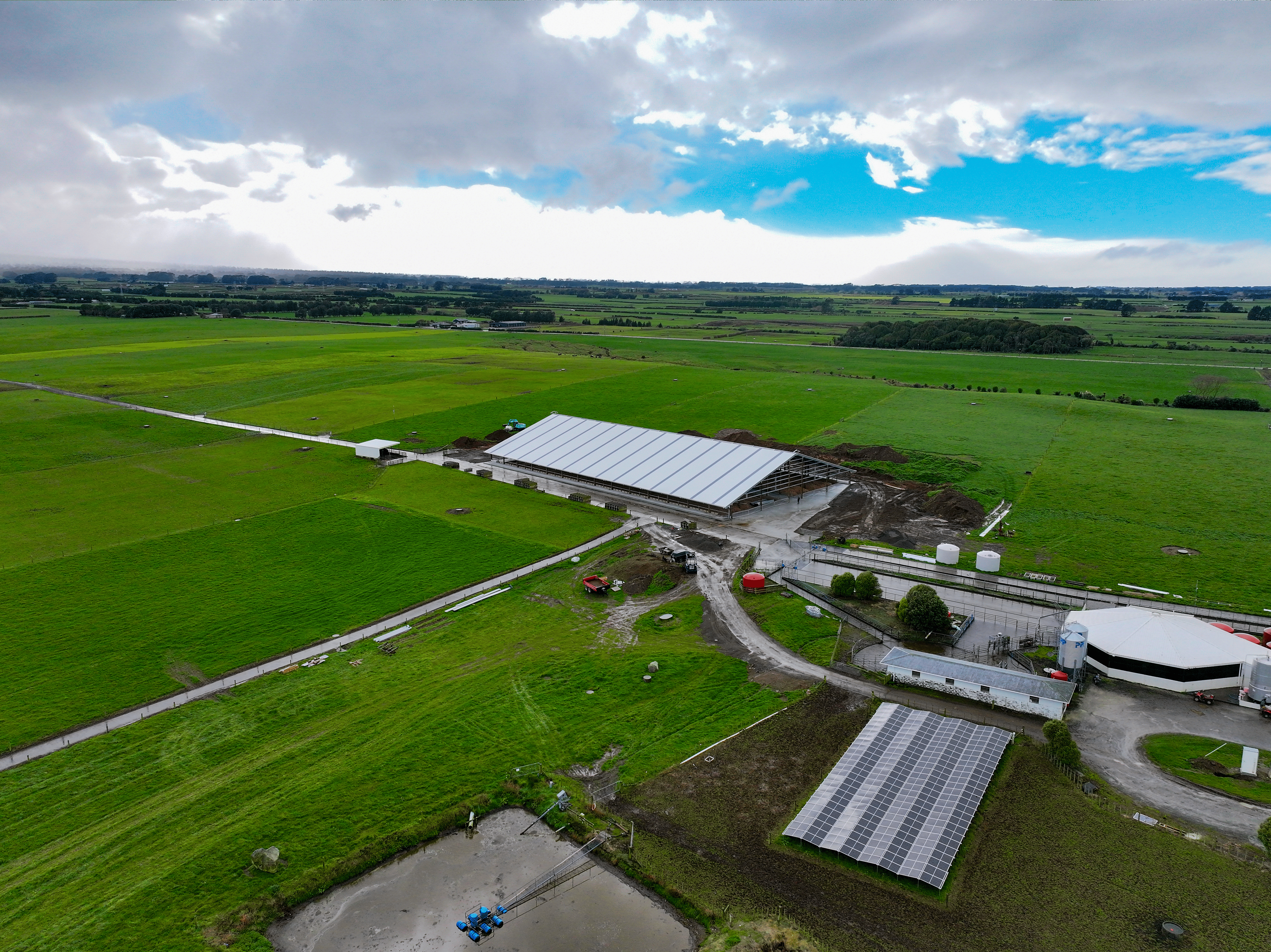

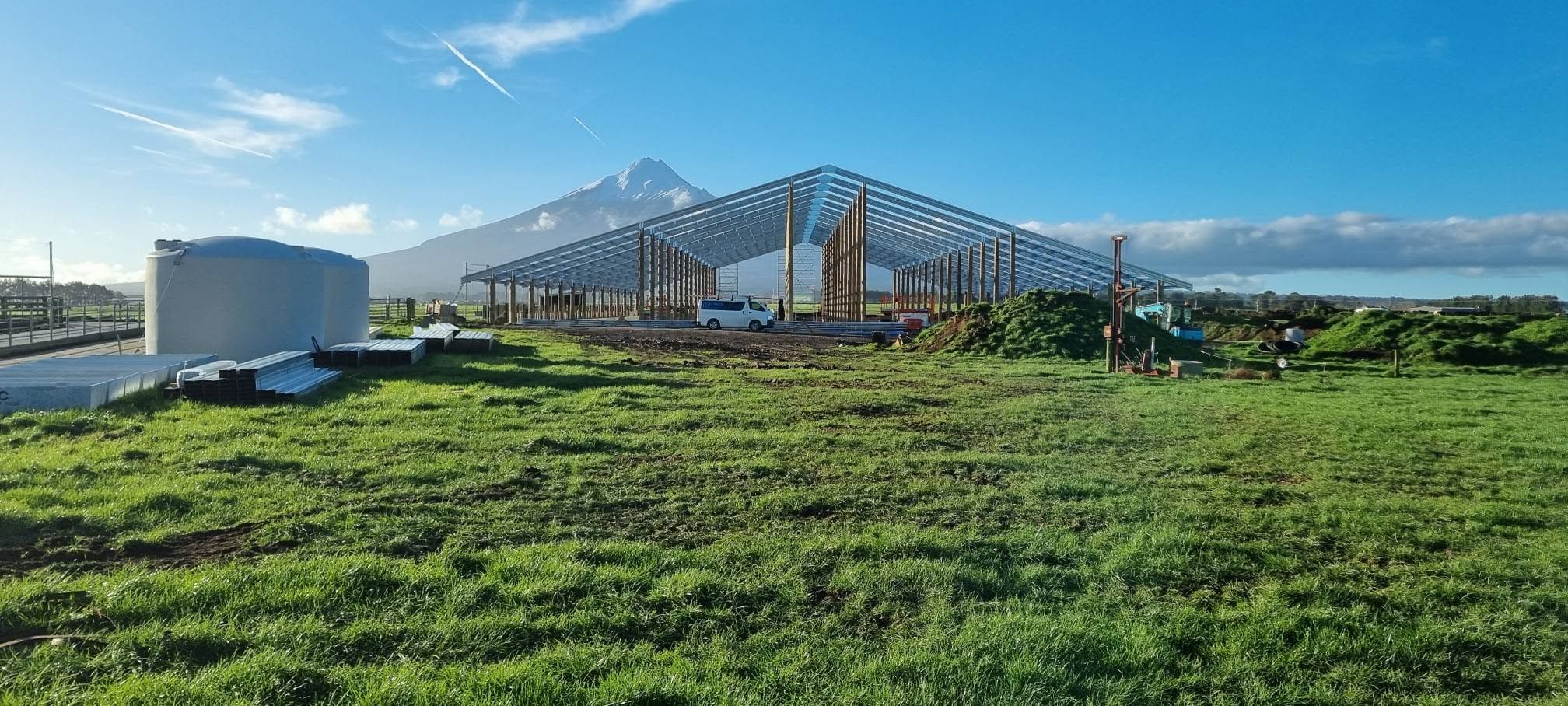

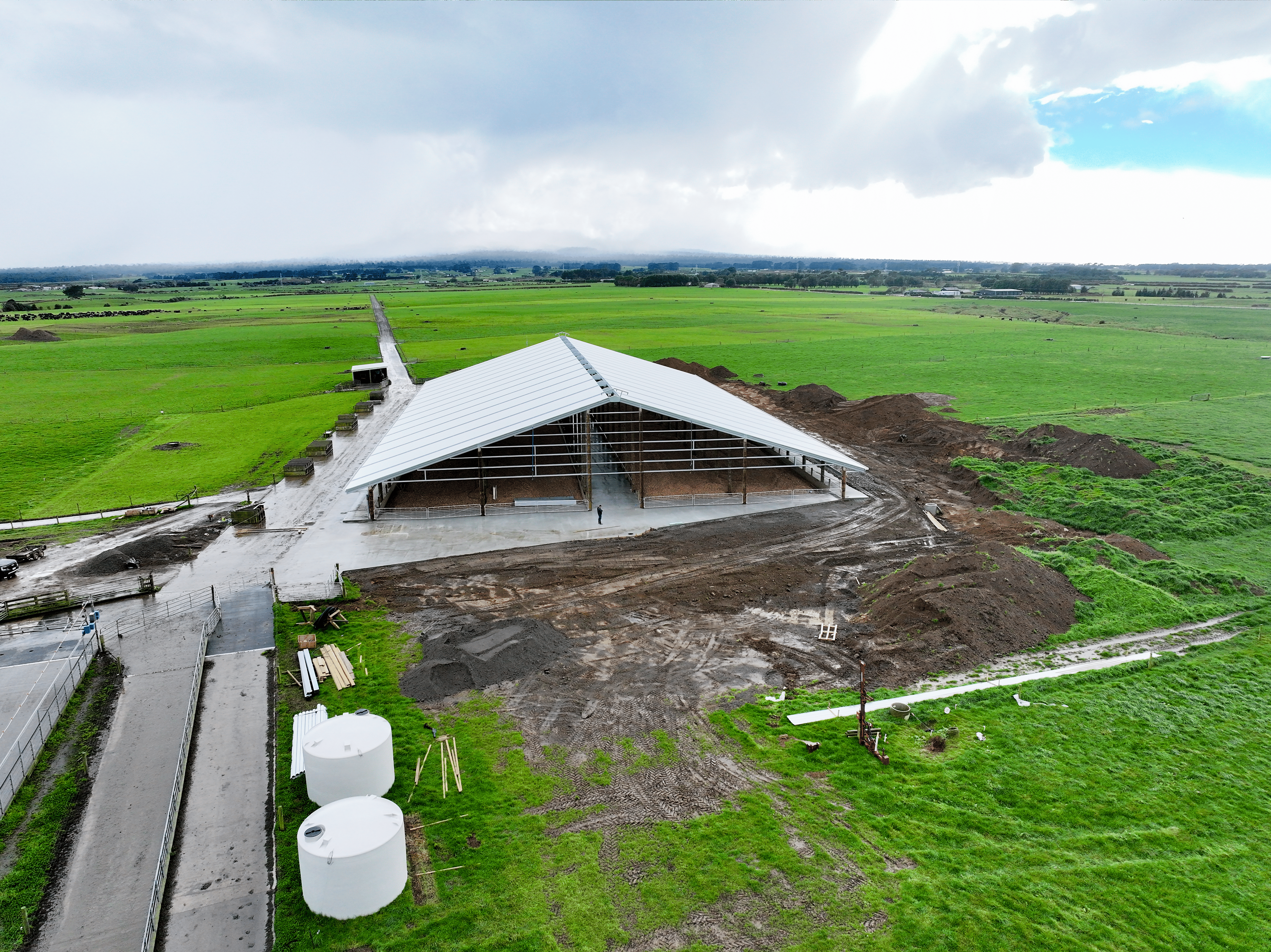

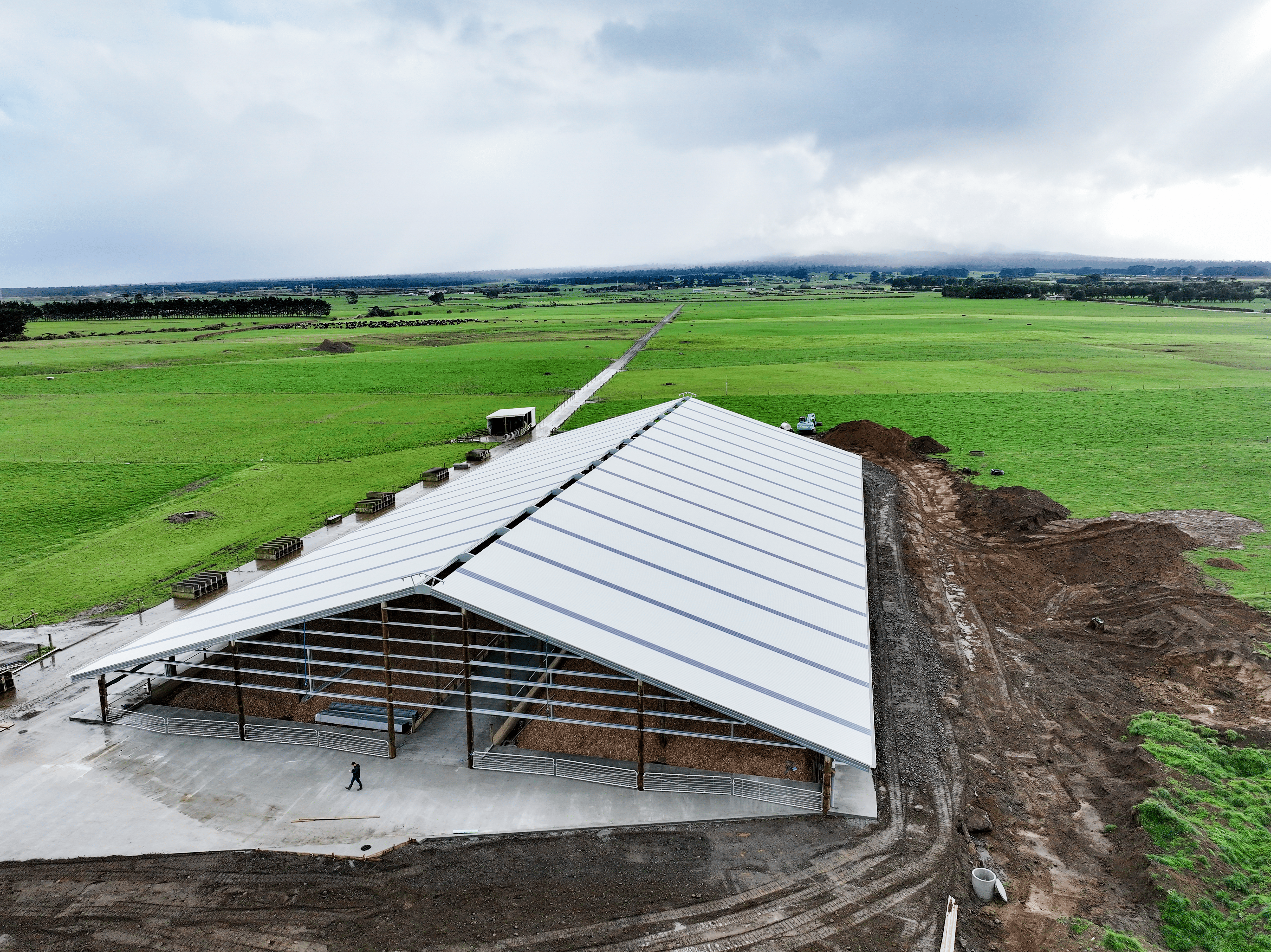

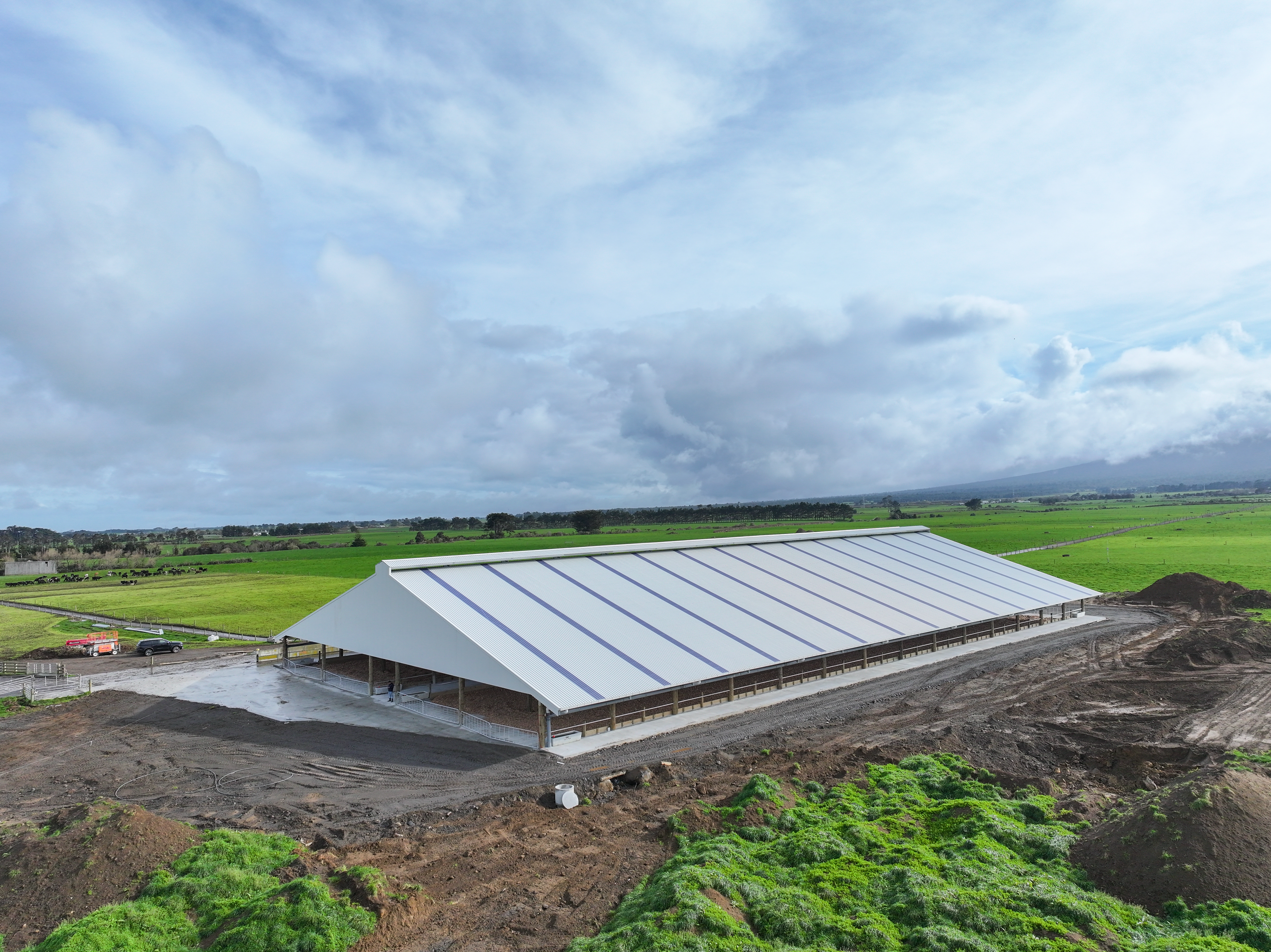

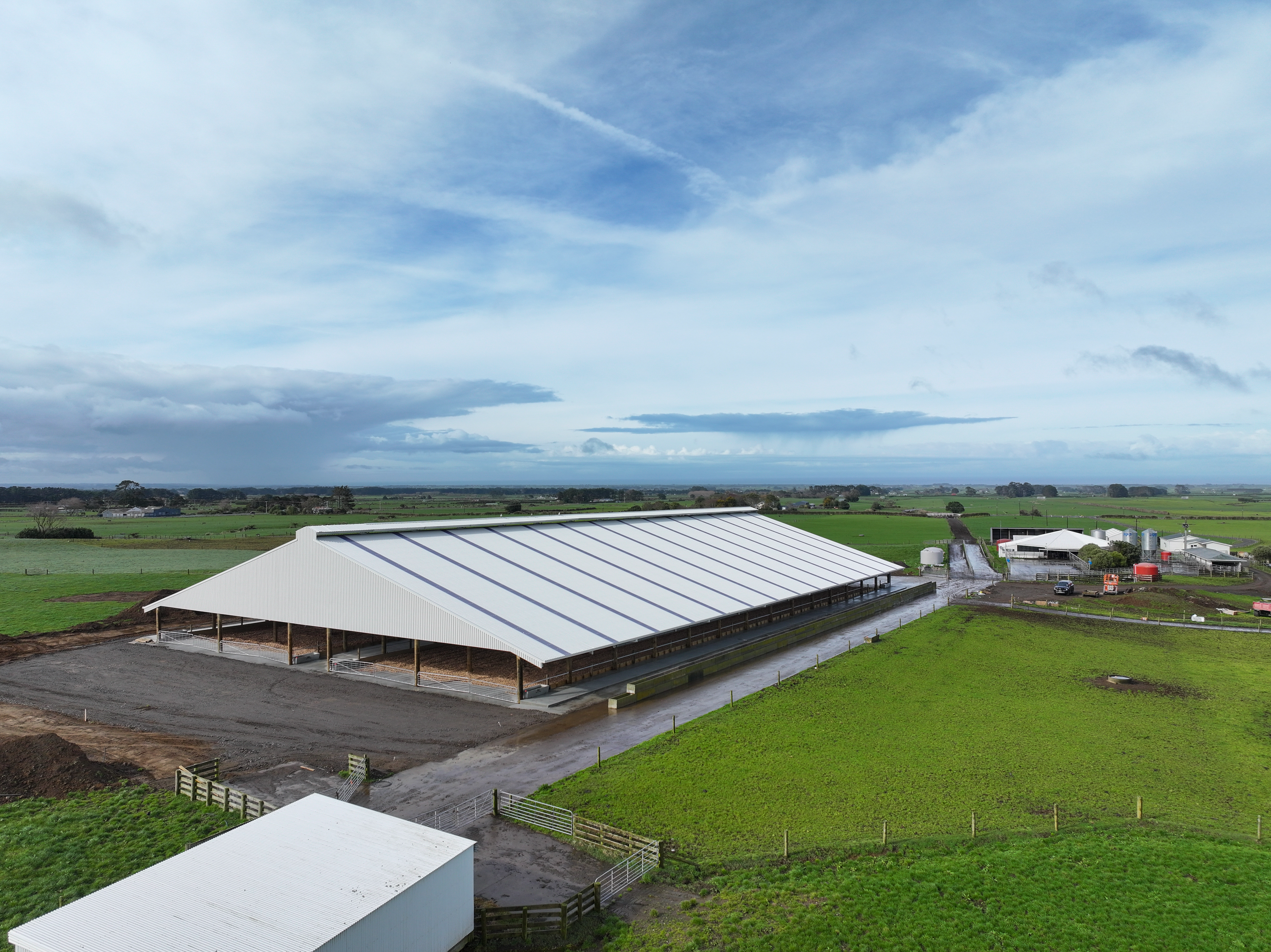

Campbell Clayton-Greene's composting barn at Awatuna, Taranaki, is an 86m by 45.5m gable building on Futura Steel Box-Beam, with 14 bays and a stepped roofline that rises to a tall central section. It sits on the side of a volcano, on sloping, stony ground, and it is designed for 400 cows.
Why Campbell Chose a Hard-Top Barn
Campbell and his wife are in their fourth season on the farm, and he always suspected wintering would be the challenge. Wet spells meant pugging, and with nowhere to hold springers and dry cows off the pasture, they were making a lot of mess.
He looked at a standoff pad, covered feed pads with rubber matting or concrete, and a plastic-roofed structure. Covered pads meant dealing with effluent, and he didn't want moving cows on and off paddocks to become another job. A plastic roof wasn't going to last, so he rang Aztech and went with something more permanent.
"The more we looked into it and started talking to people, the more we realised that having some sort of structure like this, whether it be plastic or a hardtop like this, was probably going to be useful."
Built to the Slope, Through the Stone

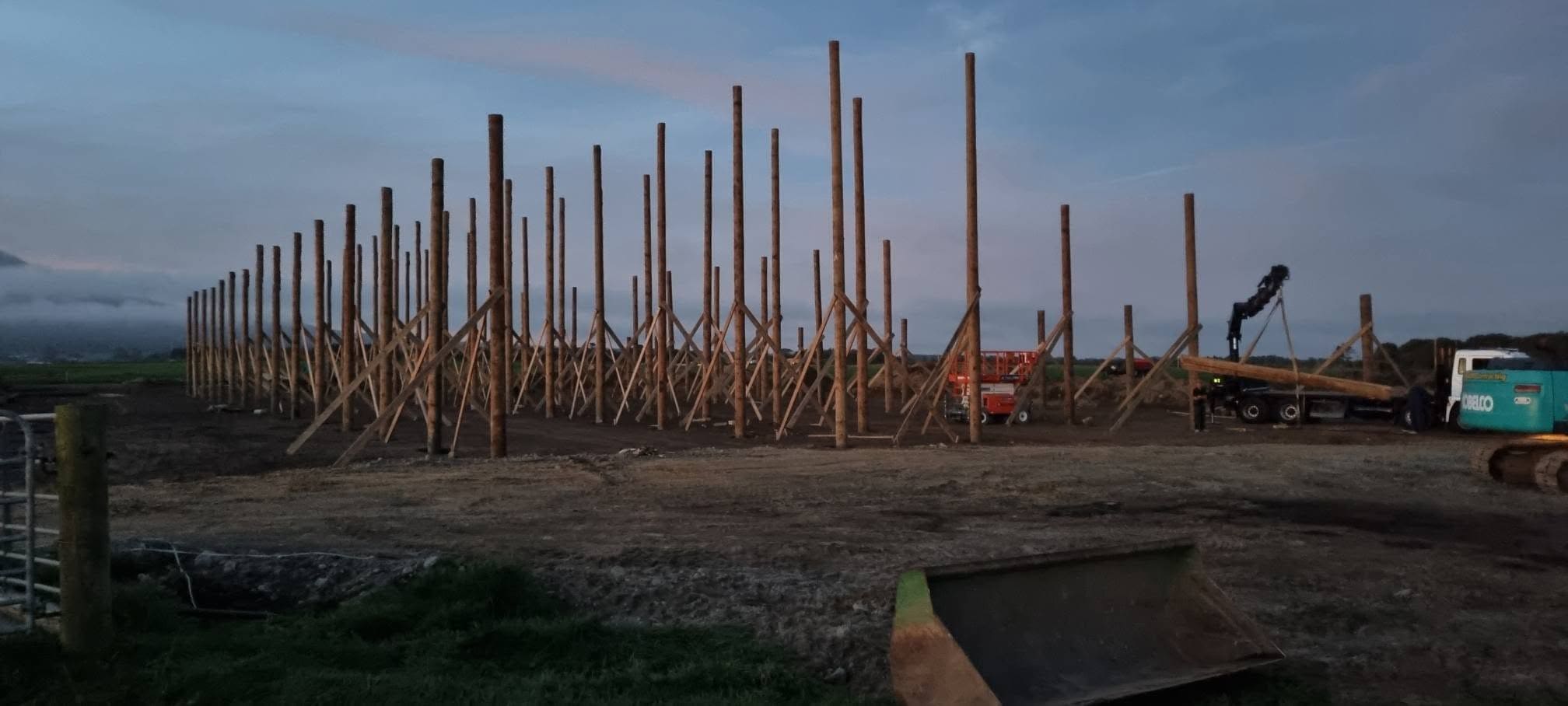

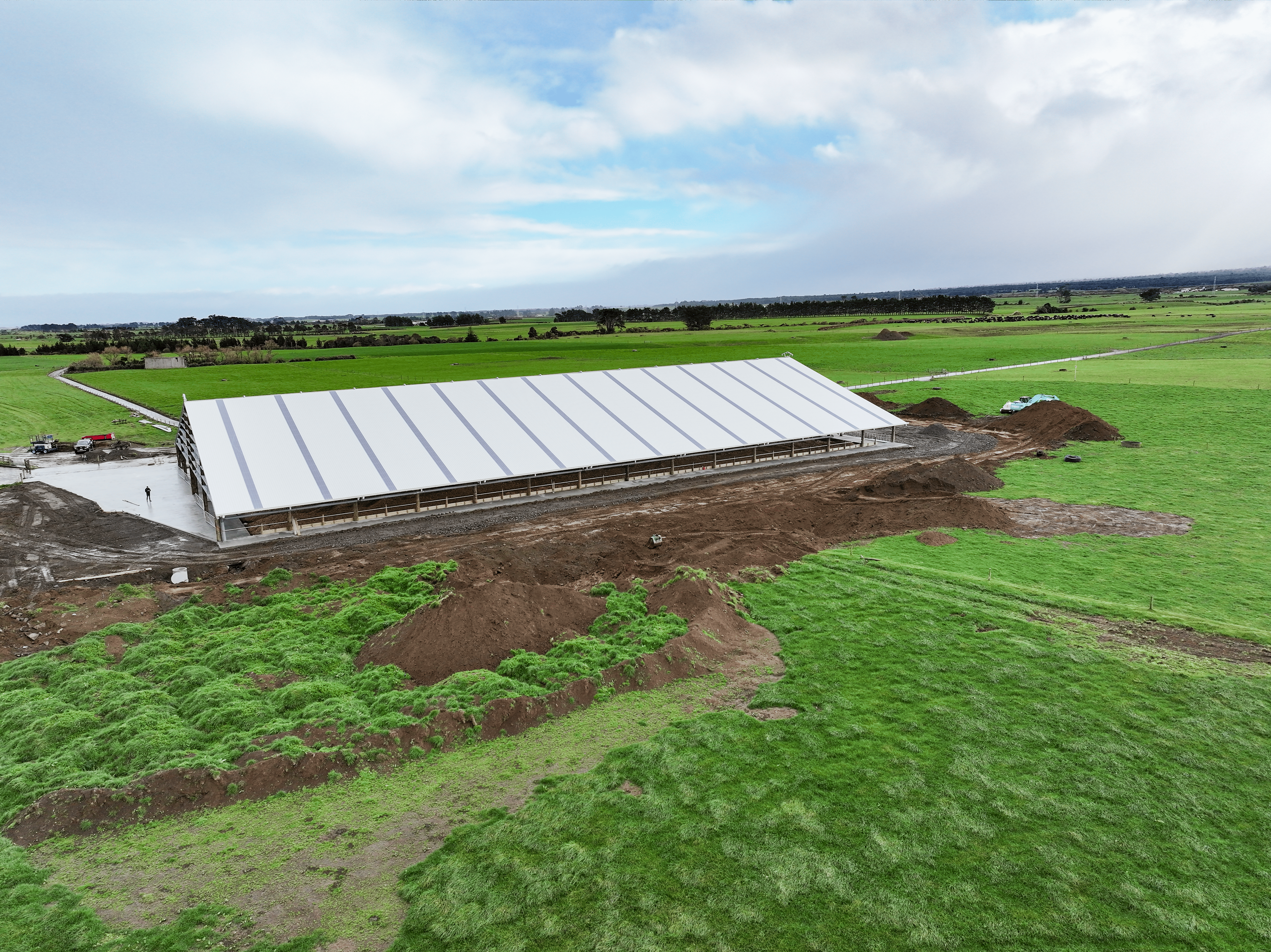

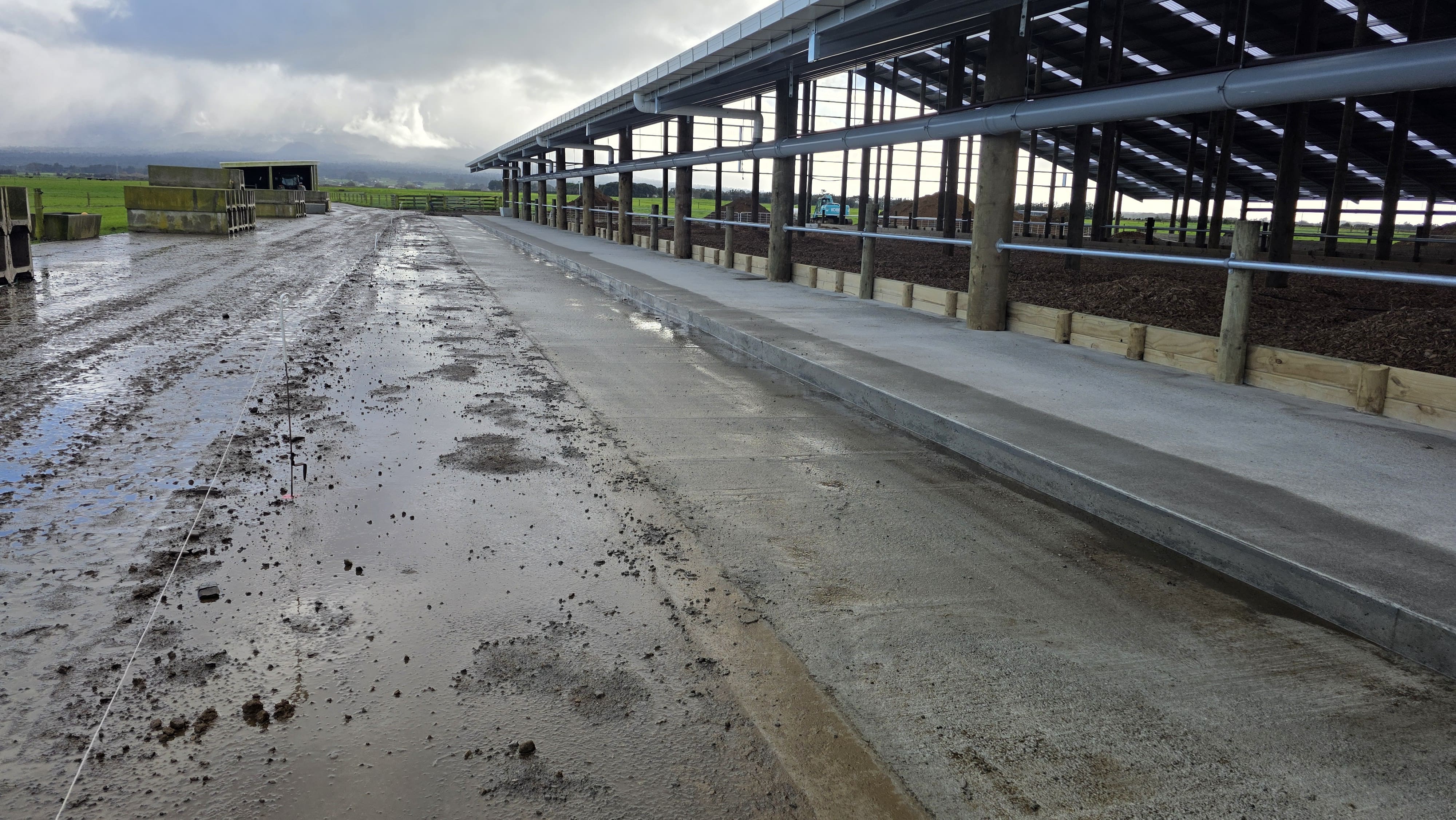

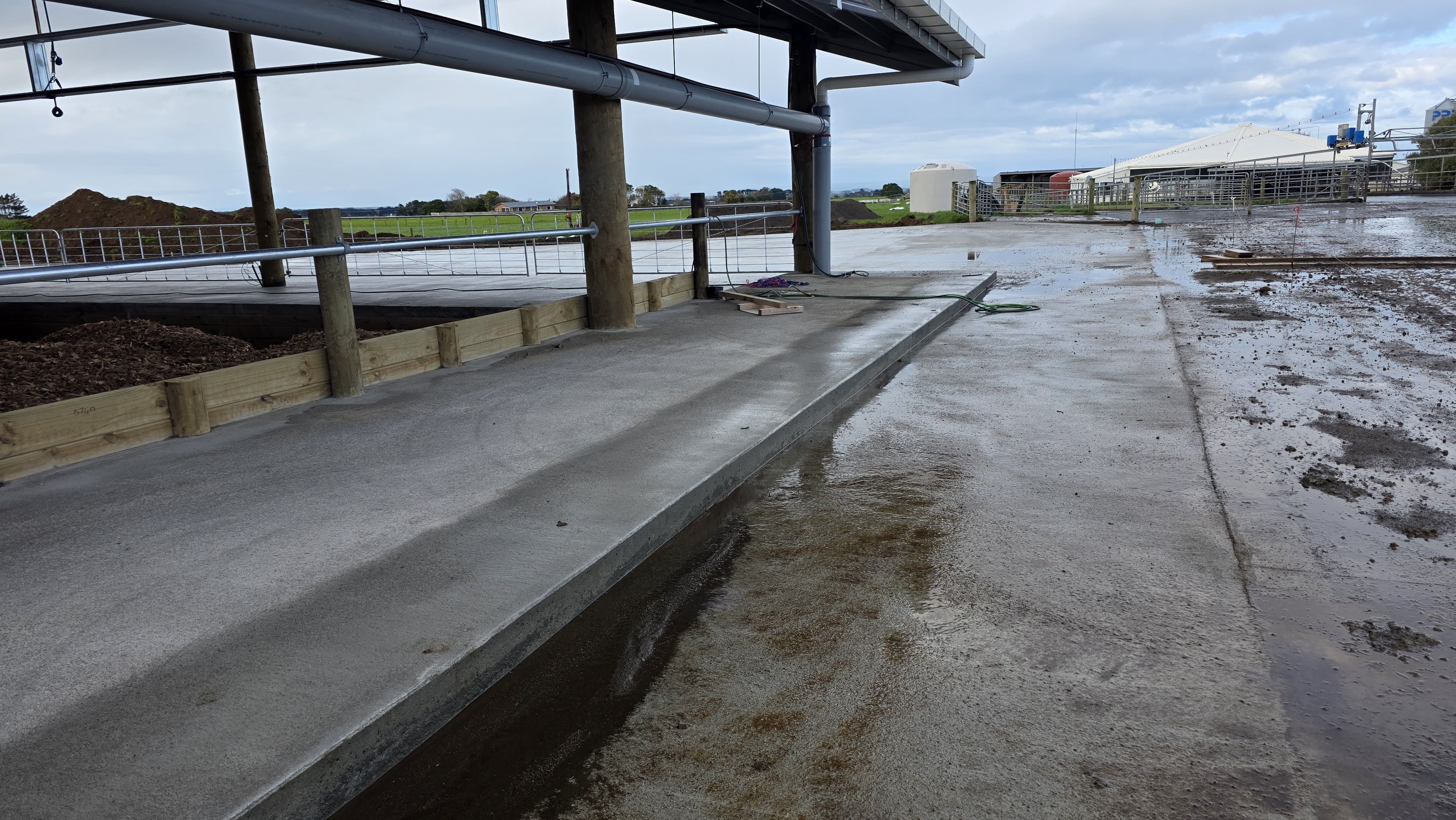

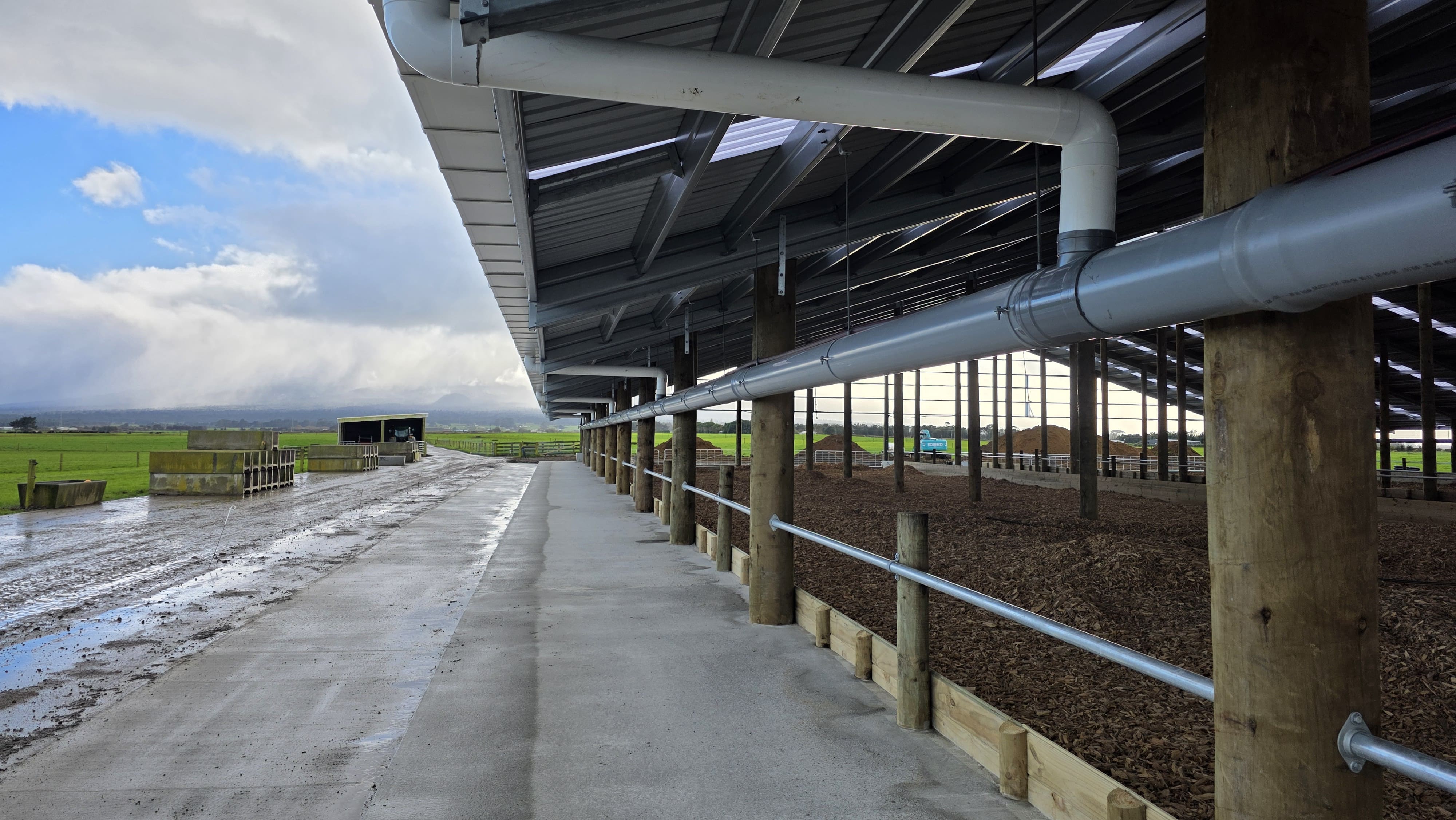

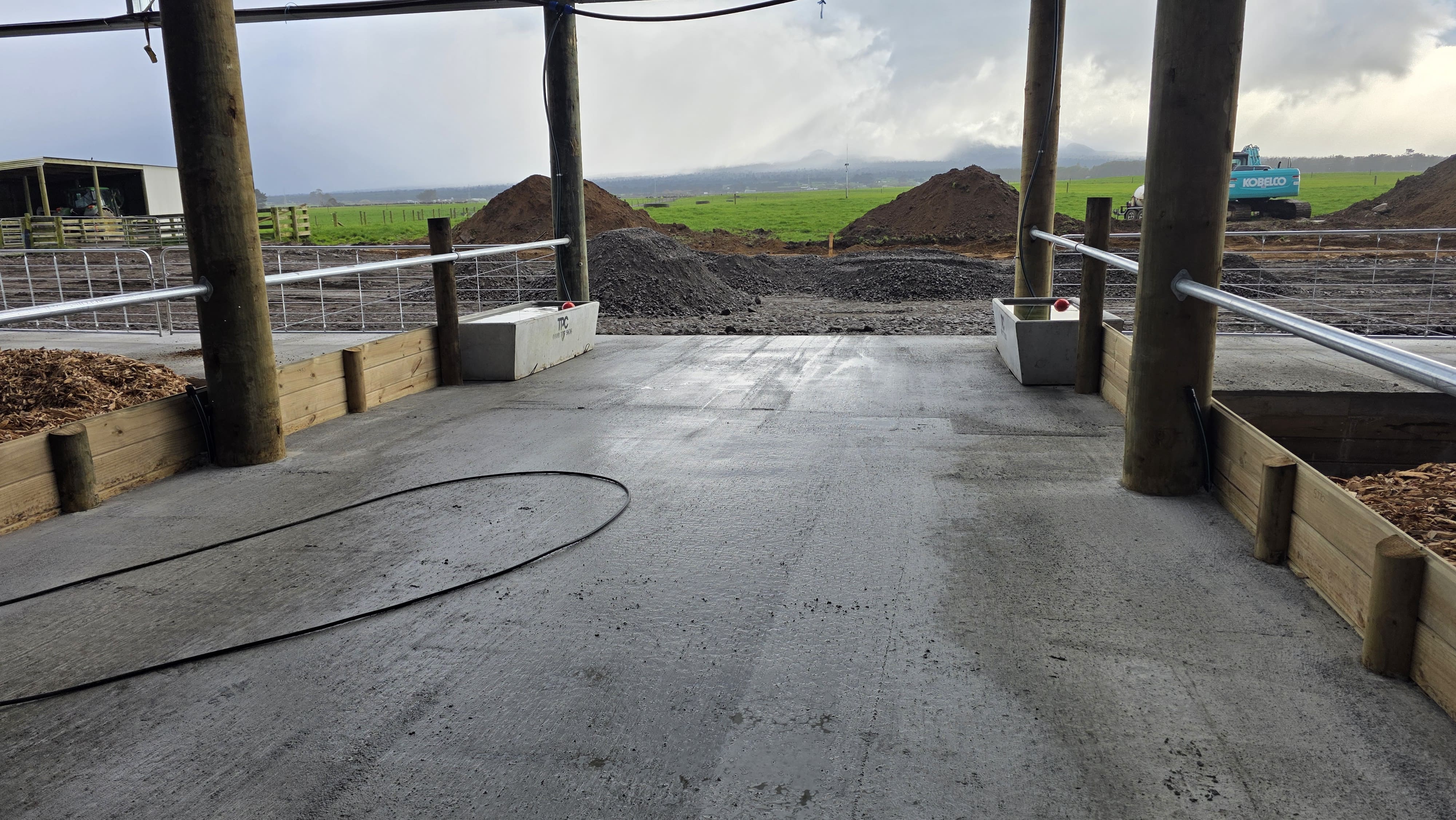

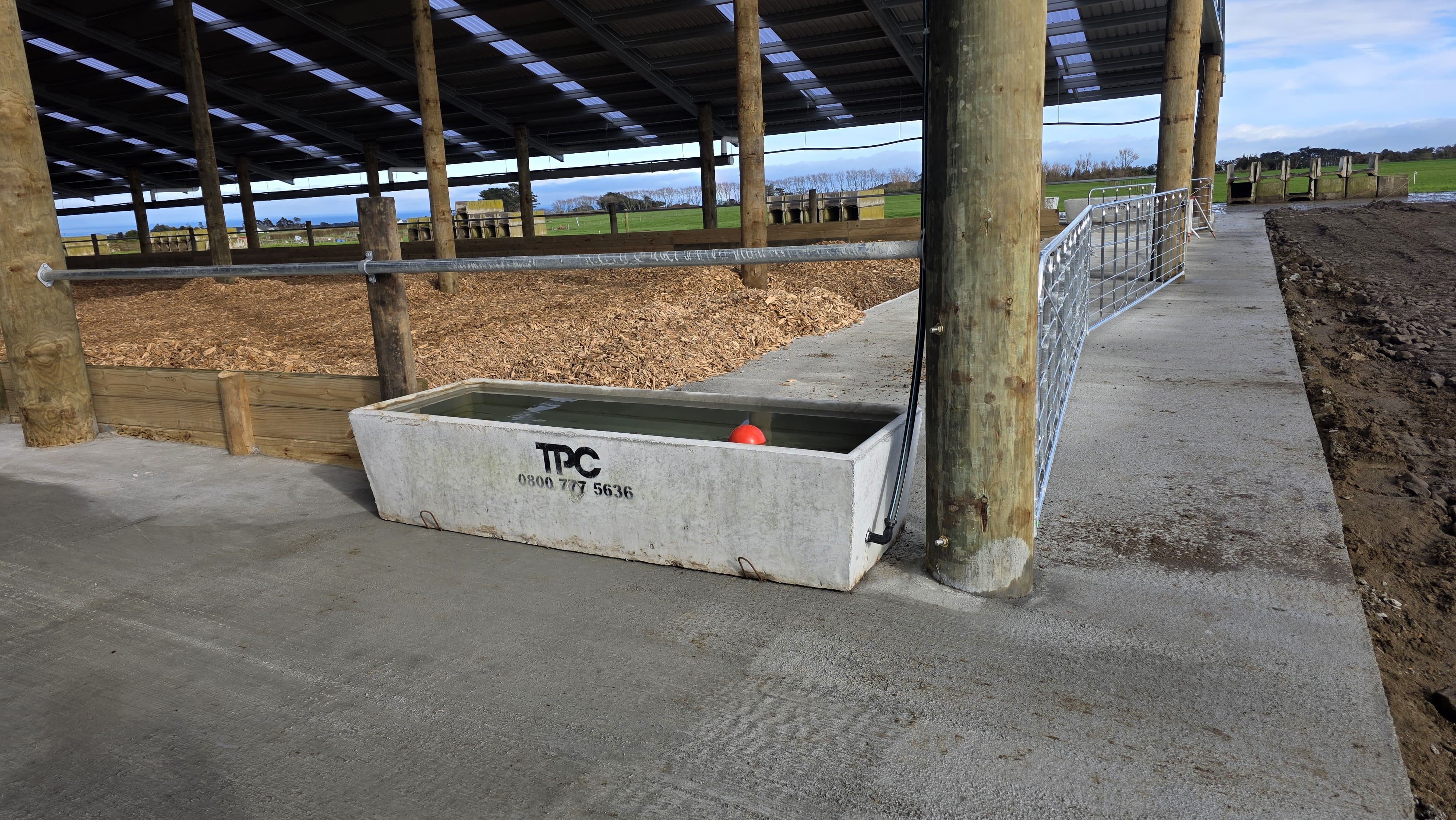

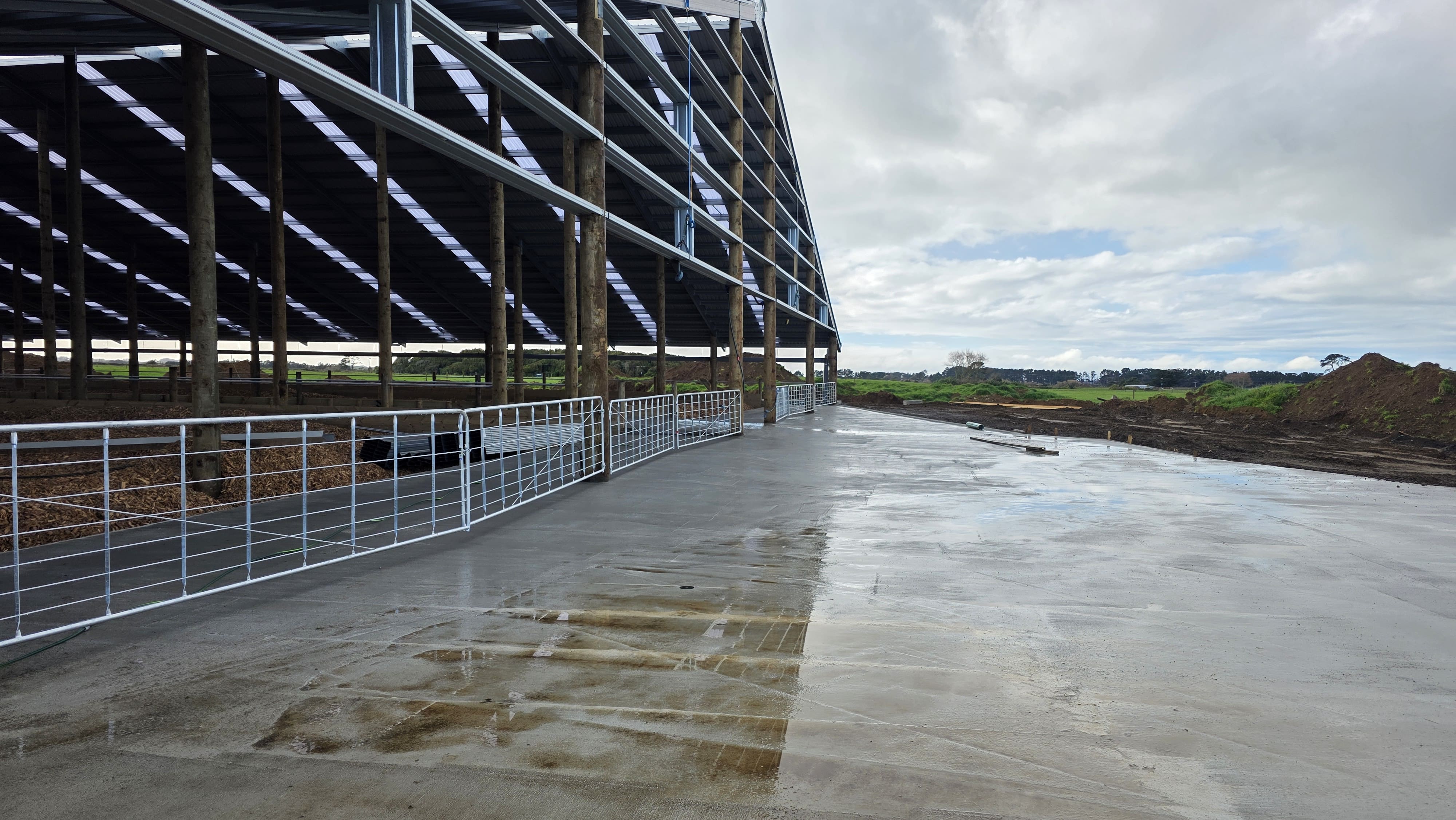

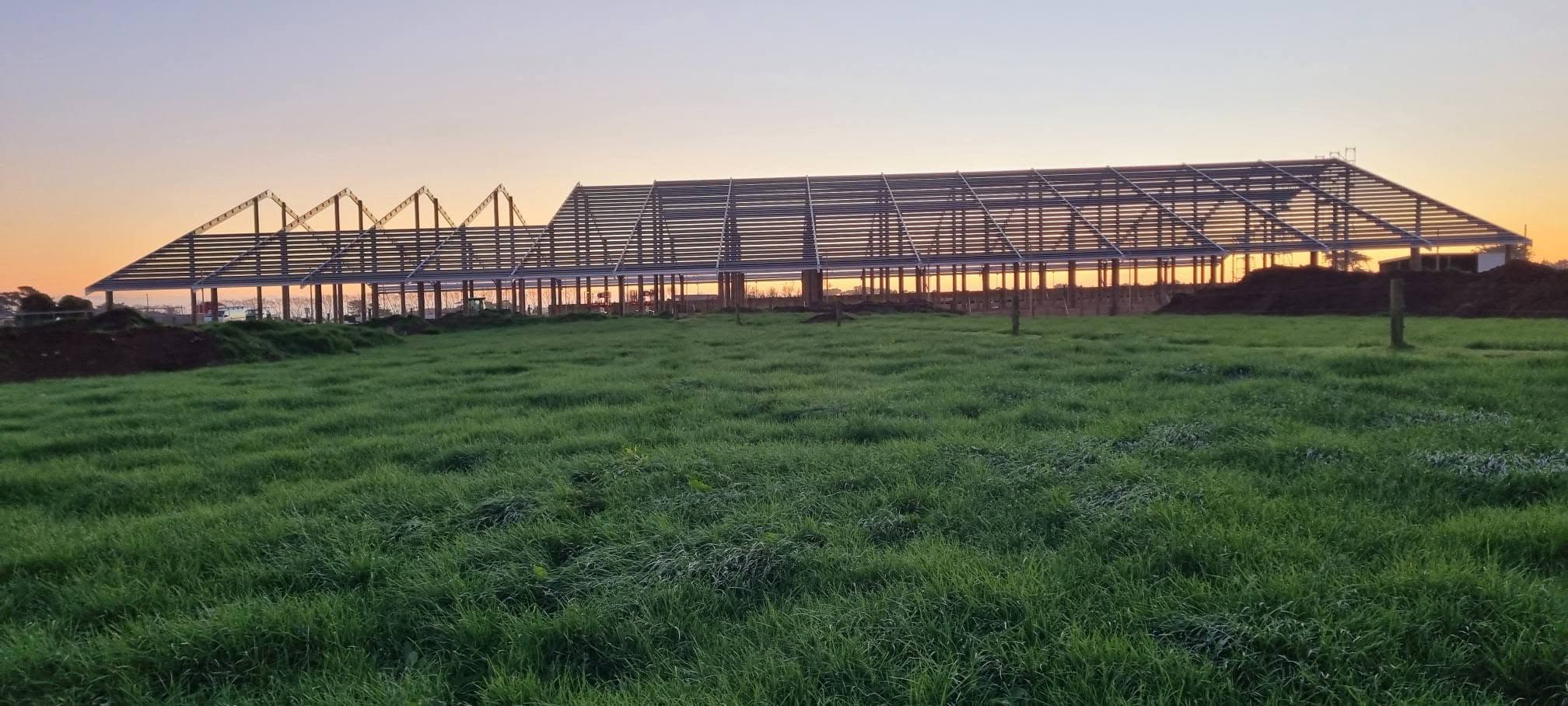

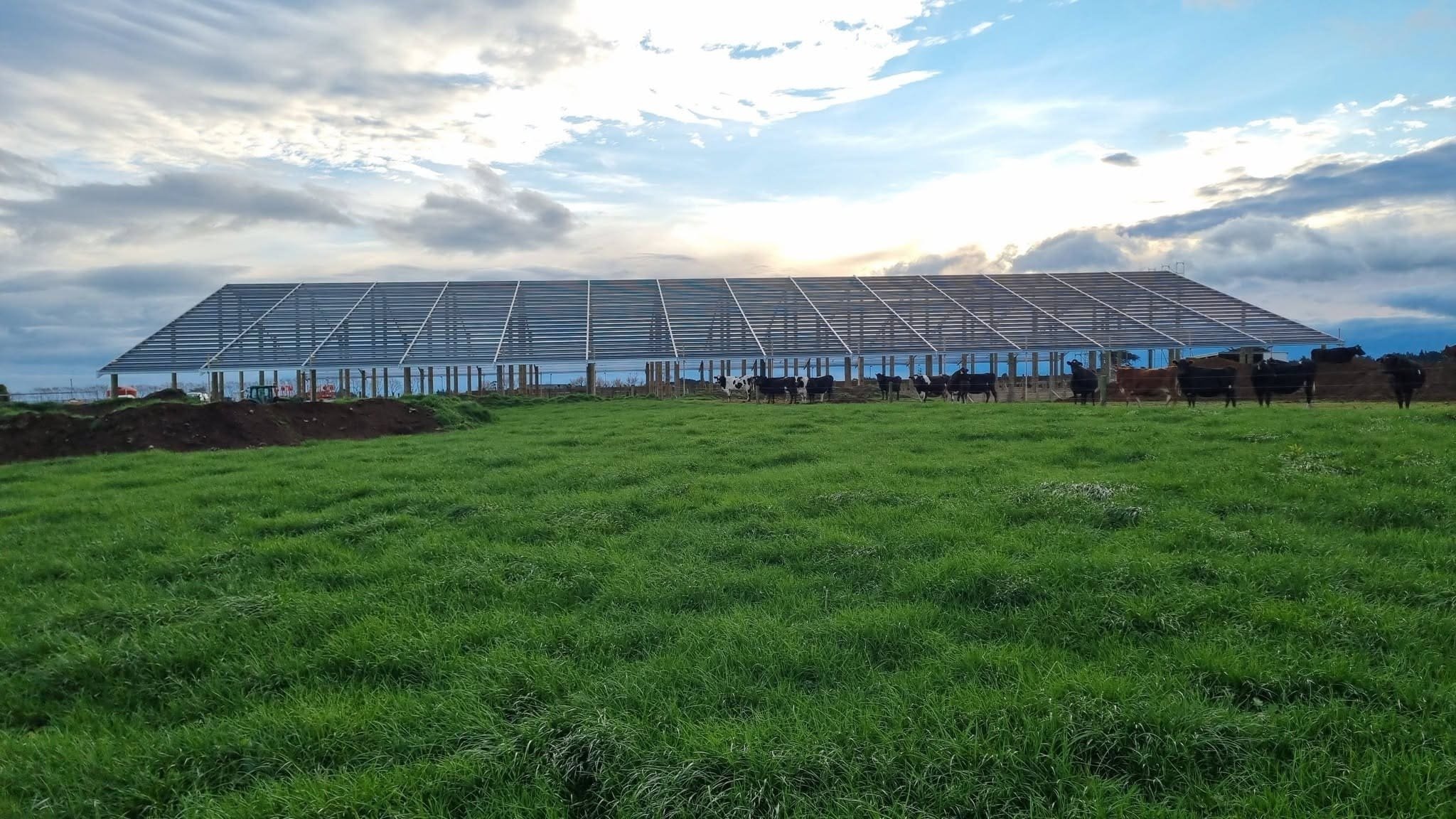

The barn is built to the slope of the land, which kept earthworks down. The ground was the tough part. The farm sits on the side of a volcano, and drilling the pole holes through stone and rock was harder than expected. Once the builders had the structure up, Campbell and his mates did the internal fit-out, including the feed lanes. Timber sides kept the cost down.

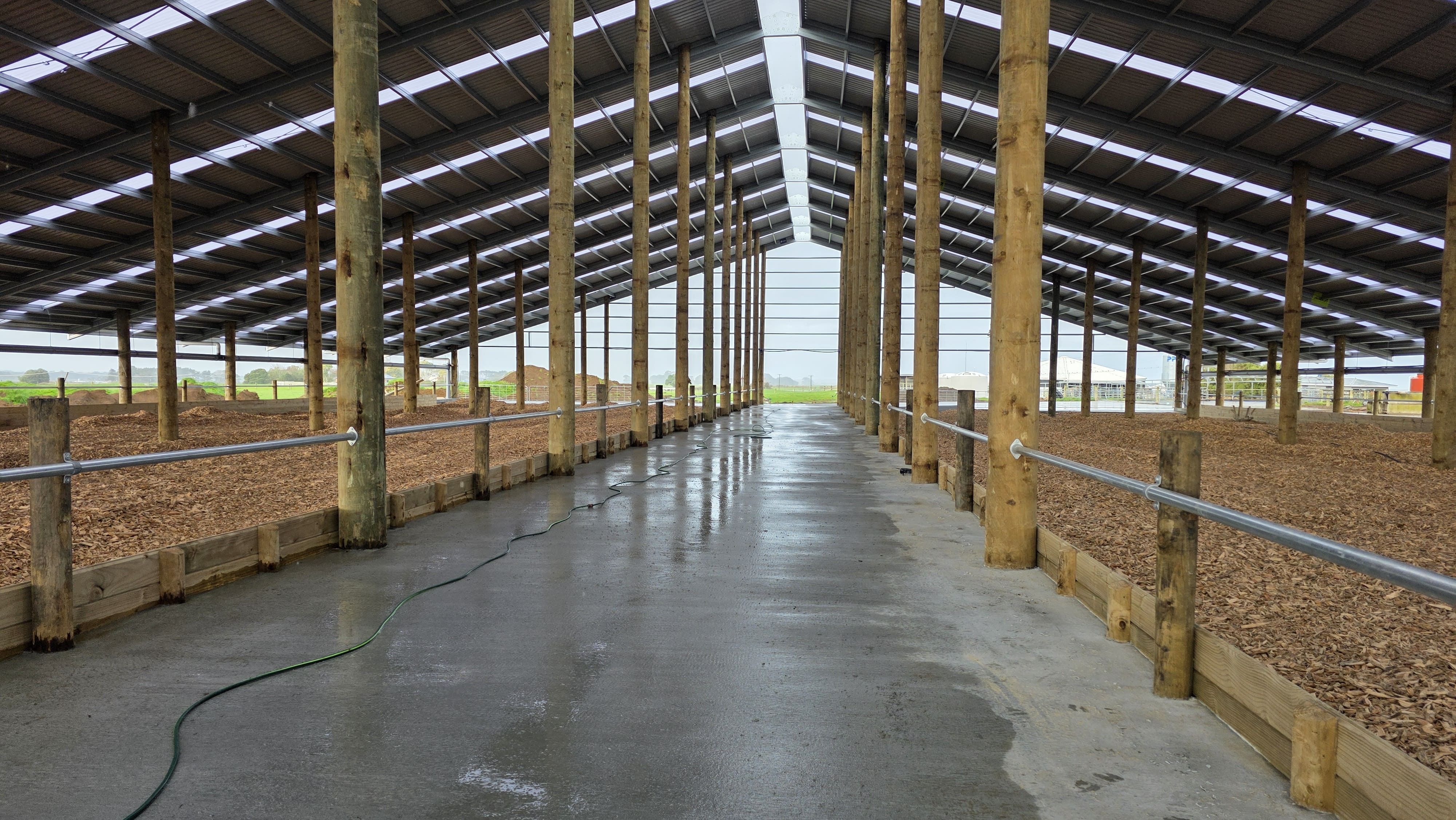

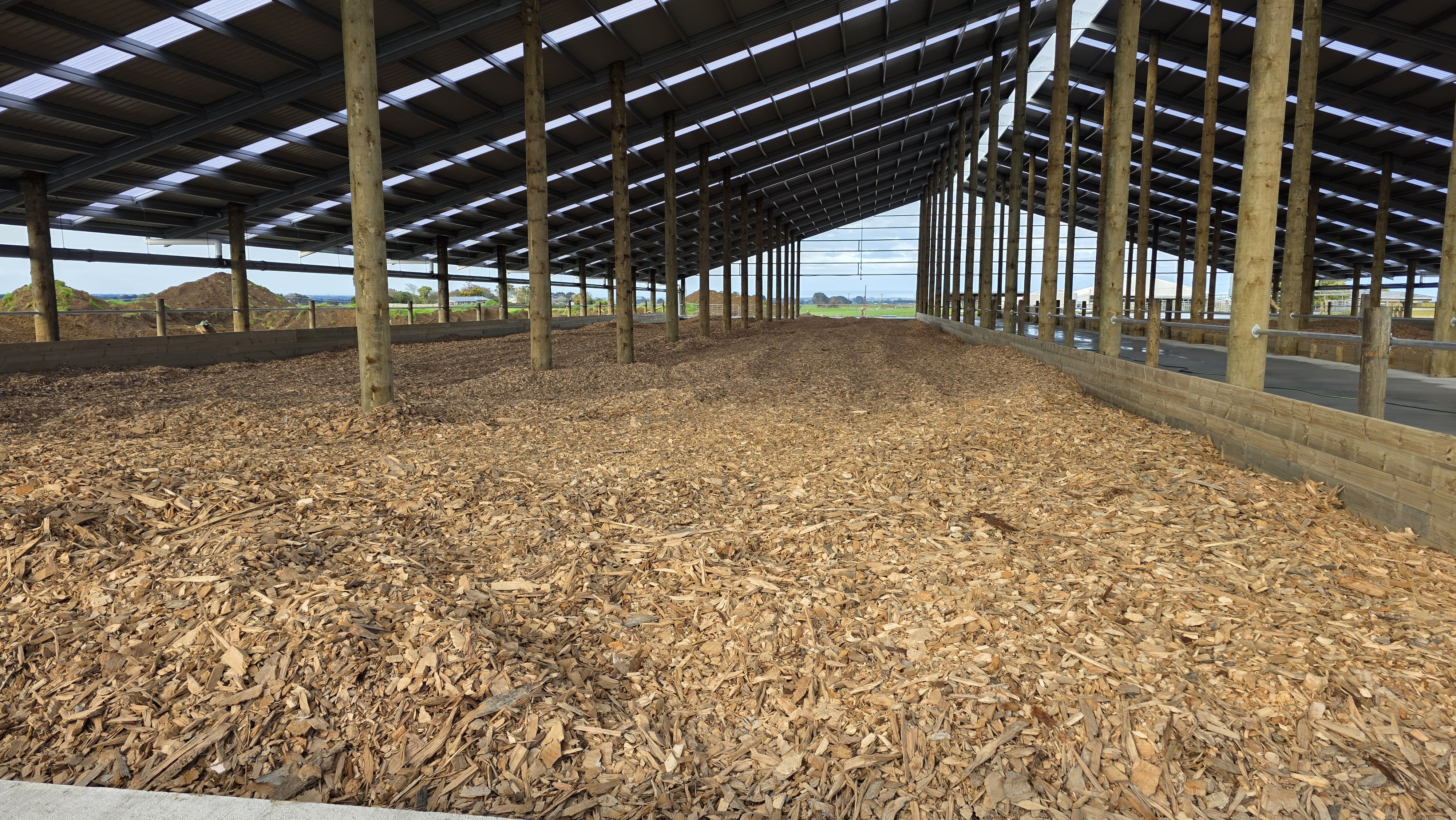

Under the bedding is clay. Overflow pipes at both ends run out to a manhole, so Campbell can check for leaching, and nothing has shown up so far. The bedding is kiln-dried mill offcuts put through a grinder and a 100mm grader. Campbell reckons the chip shouldn't be any smaller than that, and it certainly shouldn't have more fines in it.

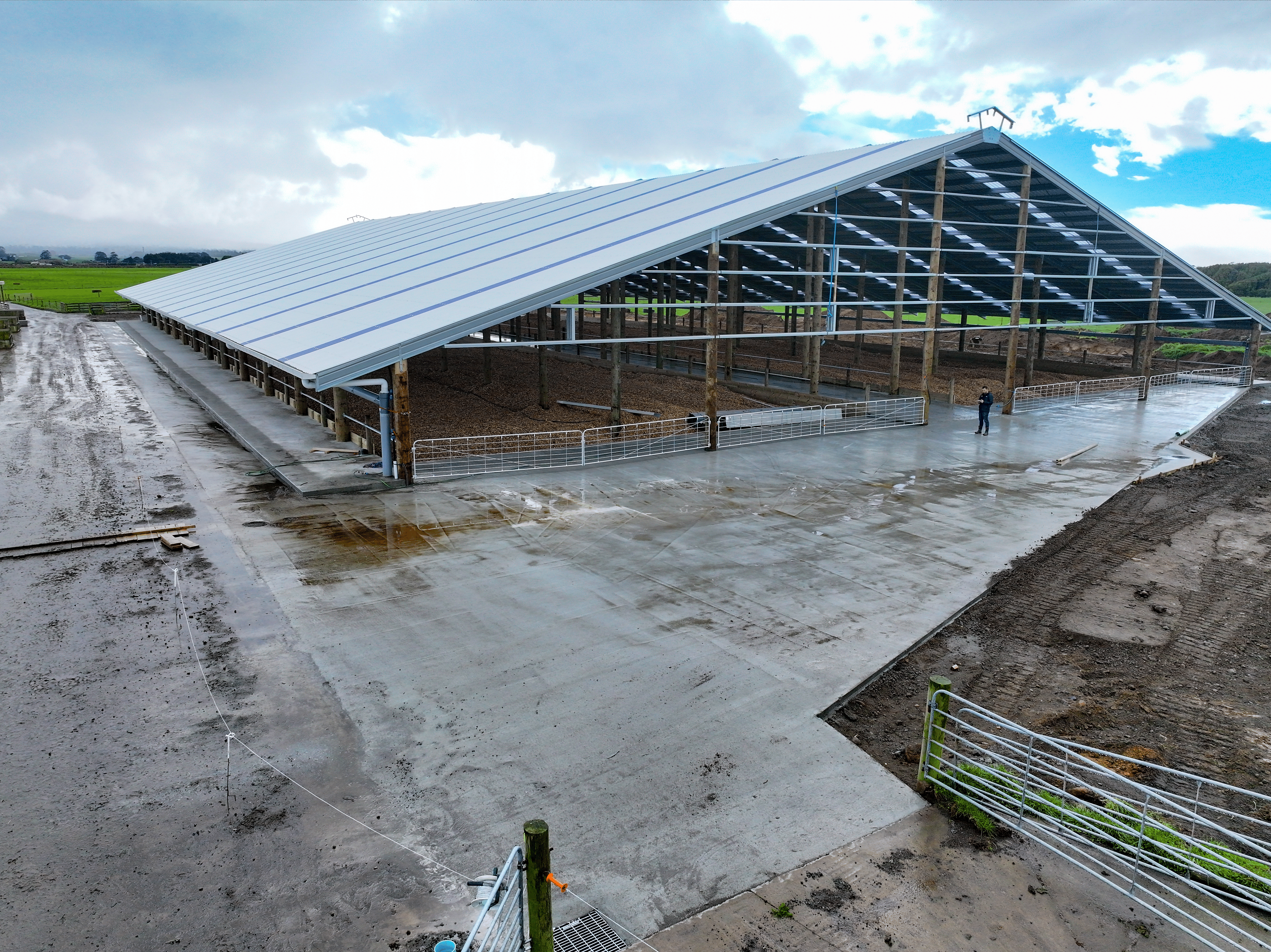

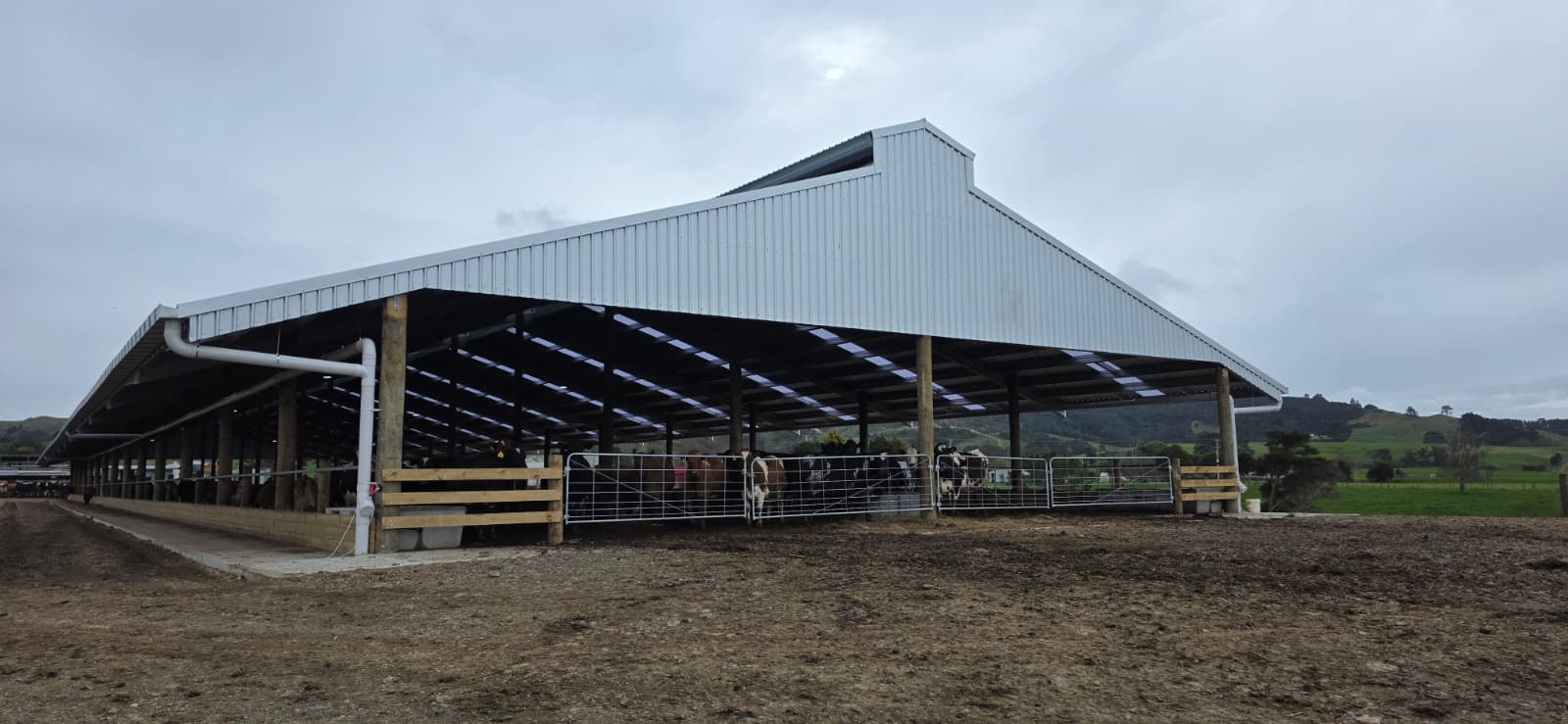

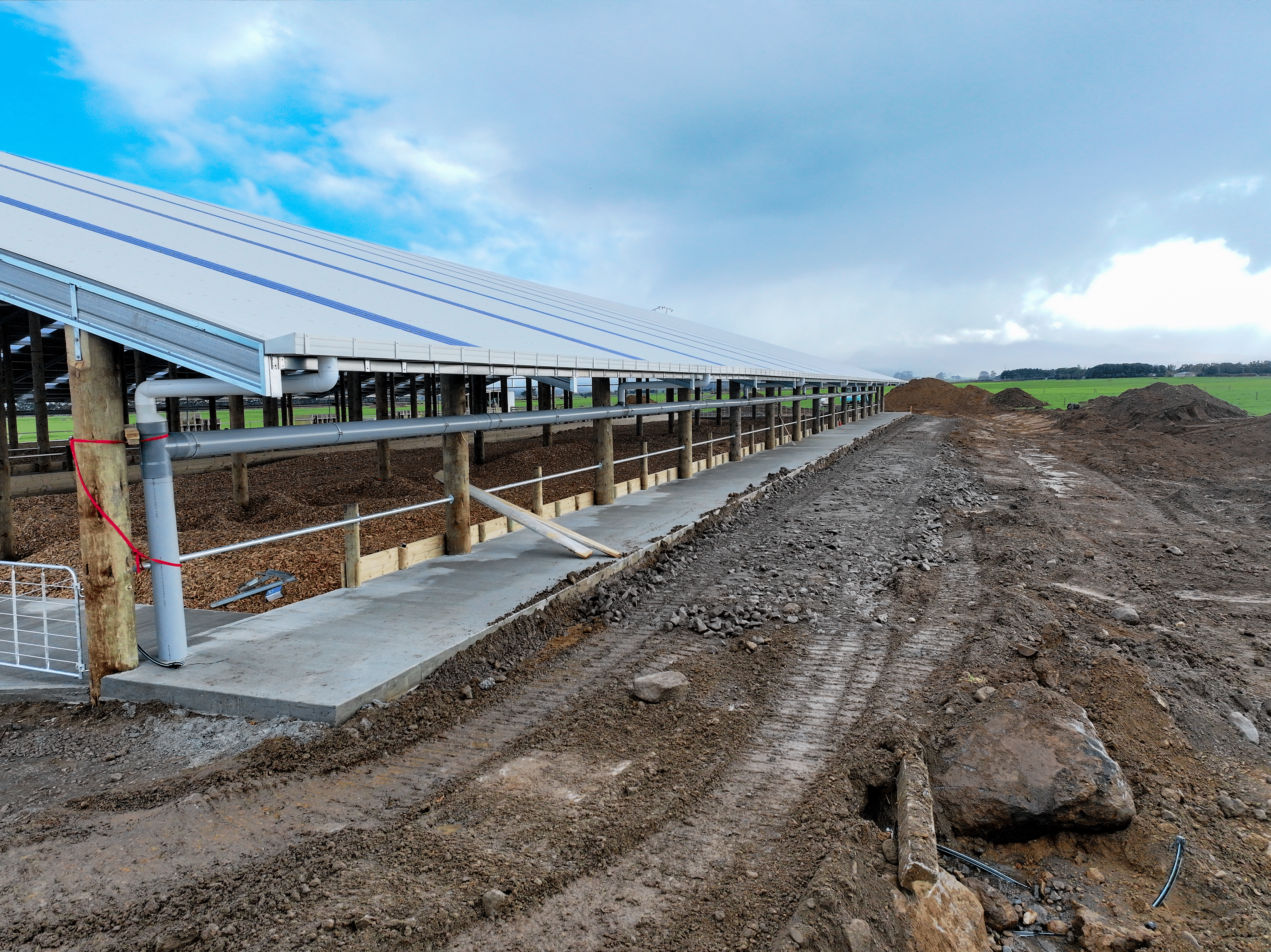

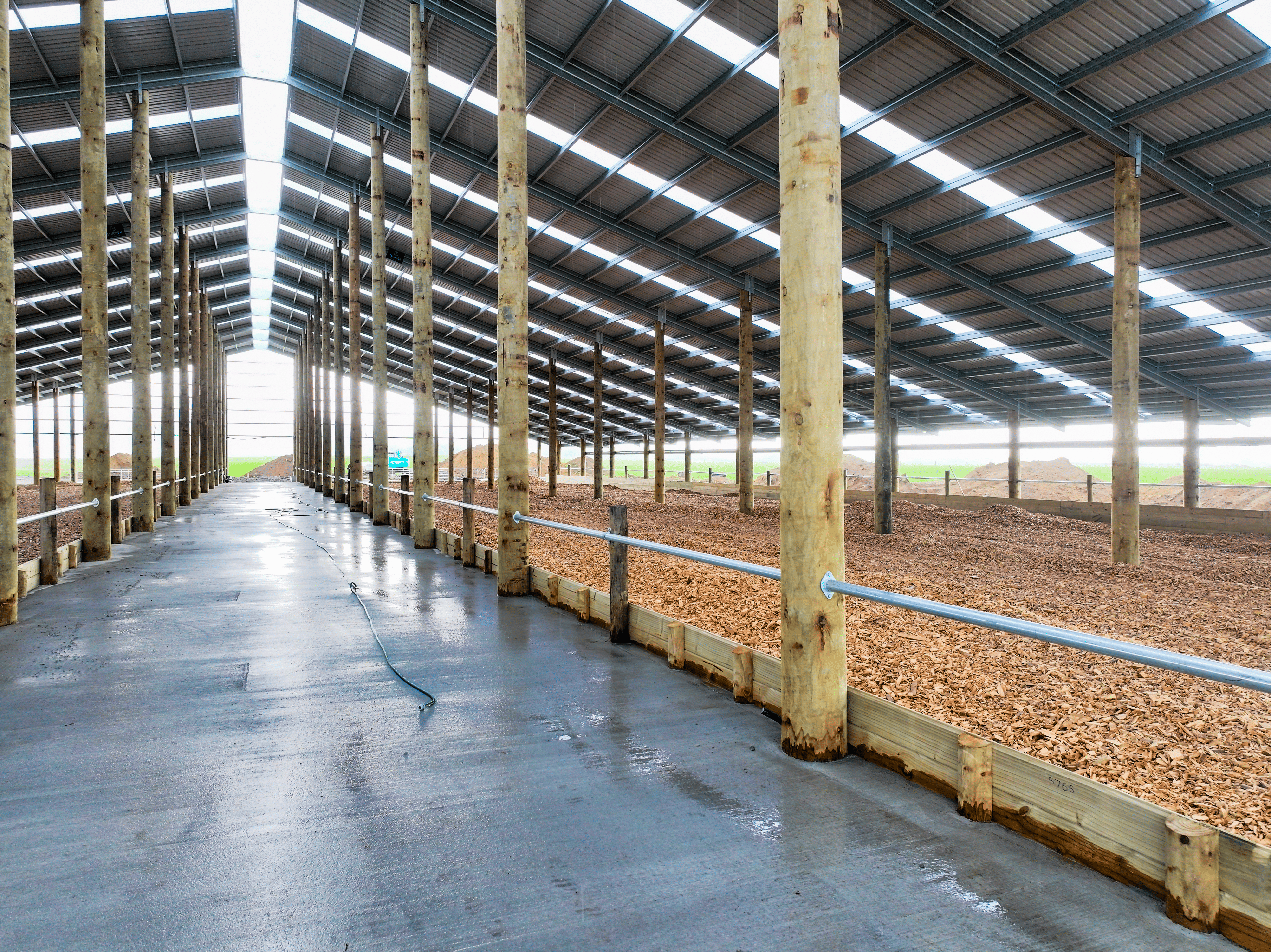

Aztech designed the barn around dry bedding and cow comfort. The 18-degree roof pitch and covered ridge vent draw fresh air in from the sides and up and out through the top, pulling moisture out of the bedding. Big overhangs keep driving rain off it, and there is one clear light per bay, enough to charge cow collars. The enclosed box-section rafters leave birds nowhere to perch.
Less Running Around at Calving
The old way meant four or five people out in 4WDs and cars, getting stuck, trying to bring calves and cows out of a springing mob in the wet. With the barn, springers are under one roof. When the first 400 cows went in on one wet night, they were moved straight in.
"It's certainly a lot more attractive for people to come here."
Campbell expects the barn to be more efficient for staff, and it gives him a better setup when he's looking for people to join the team.
Thinking About a Composting Barn for Your Farm?
Aztech works with farmers across New Zealand to design and supply strong, practical farm buildings that are built for real on-farm conditions. Whether you are planning a composting barn, feedpad cover, calf shed or other farm infrastructure, our team can help you explore the right structure for your farm system.
Location: Awatuna, Taranaki
Application: Animal housing, Composting barns
Reference: C3670
